VD-H Series 3KVAC Isolation Fixed Input Dual Loop Regulated Output DC-DC Converters With 8KV Anti-static Protection

VD-H Series 3KVAC Isolation Fixed Input Dual Loop Regulated Output DC-DC Converters With 8KV Anti-static Protection

4.00 - 6.50 USD ($)/Piece

Product Details:

  • Product Type DC DC Converter
  • Input Voltage 3.3, 5, 12, 15, 24VDC
  • Output Voltage 5, 9, 12, 15VDC
  • Output Power 0.5~2 Watt (w)
  • Efficiency 70%~85%
  • Ripple 50mVp-p
  • Supply Ability : 50000 Piece Per Month
  • Click to view more
X

Price And Quantity

  • 4.00 - 6.50 USD ($)/Piece
  • 10 Piece

Product Specifications

  • 3.3, 5, 12, 15, 24VDC
  • 70%~85%
  • 5, 9, 12, 15VDC
  • 0.5~2 Watt (w)
  • DC DC Converter
  • 50mVp-p

Trade Information

  • Shenzhen
  • Paypal, Telegraphic Transfer (T/T)
  • 50000 Piece Per Month
  • 3 Days
  • Yes
  • Contact us for information regarding our sample policy
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia

Product Description

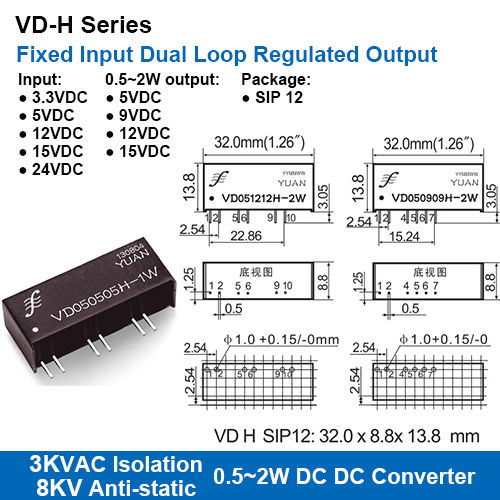

VD-H Series 3KVAC Isolation Fixed Input Dual Loop Regulated Output DC-DC Converters With 8KV Anti-static Protection


The main parameters:

Output power range: 0.5-2W

Input voltage: 3.3, 5, 12, 15, 24VDC

Output voltage: 5, 9, 12, 15VDC

Isolation voltage: 3000VAC

With 8KV Anti-static Protection

Output accuracy: ±2%

Package type: SIP12

Ripple: 50mVp-p

Efficiency: 70%~85%

Operating temperature: -40~85 degree
