Dual Input and Compare Output Override Control Isolation Amplifier

Dual Input and Compare Output Override Control Isolation Amplifier

39.50 - 44.00 USD ($)/Piece

Product Details:

  • Output Compare output: 4-20mA, 0-20mA, 0-5V, 0-10V, 1-5V
  • Power Supply 24V/12V/15V/5VDC
  • Input Dual input: 4-20mA, 0-20m, 1-5V, 0-5V, 0-10V
  • Supply Ability : 50000 Piece Per Month
  • Click to view more
X

Price And Quantity

  • 1 Piece
  • 39.50 - 44.00 USD ($)/Piece

Product Specifications

  • Dual input: 4-20mA, 0-20m, 1-5V, 0-5V, 0-10V
  • Compare output: 4-20mA, 0-20mA, 0-5V, 0-10V, 1-5V
  • 24V/12V/15V/5VDC

Trade Information

  • Shenzhen
  • 50000 Piece Per Month
  • 3 Days
  • Yes
  • Contact us for information regarding our sample policy
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia

Product Description

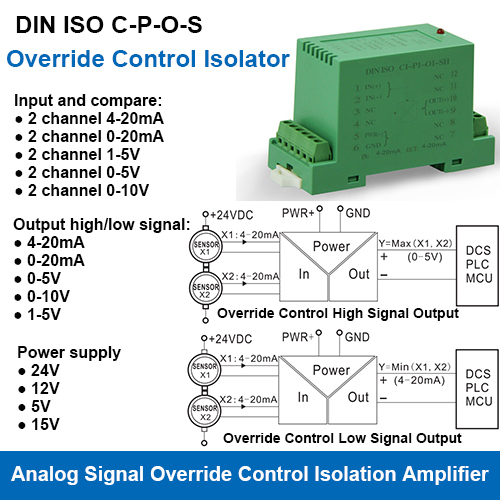

DIN ISO C-P-O-S Dual Input and Compare Output Override Control Isolation Amplifier

Specification:

  • Dual input: 4-20mA, 0-20m, 1-5V, 0-5V, 0-10V
  • Compare output: 4-20mA, 0-20mA, 0-5V, 0-10V, 1-5V
  • Power supply: 24V/12V/15V/5VDC
  • Isolation voltage: 3KVDC
  • Dual input and compare output (compare and output high or low signal)
  • Package type: DIN rail mounted

Features:

  • 2-Channel analog direct input. Select high or low signal output.
  • Sensitive resolution, rapid speed of response.
  •  3000VDC isolation between the working power, input and output signals.
  • Auxiliary power supply: 5V/12V/15V/24V direct single power supply
  • Low cost, Ultra-small volume, no need to adjust, easy to use and high reliability.
  • Standard DIN35 DIN Rail mount.
  •  Industrial temperature range: - 45 to + 85 degree

Applications:

  • 2-Channel analog signal comparison and selection
  • Industrial spot process control
  • electric autoimmunization, and automation & control safety monitoring
  • Signal non-distortion control and transmission
  • Signal comparison control and alert
  • Ground interference suppression

Introduction:

SunYuan DIN ISO C-P-O-S series analog signal comparison transmitter is a high / low analog signal select controller. In this transmitter, 2-channel input analog signals are compared to choose a high or low signal (Select high or low signal) according to the setting demands, and the selected signal will be isolated amplified. The product is mainly composed of multi-channel high isolation DC / DC power supply, signal comparator, signal isolation amplifying and conversion circuits. It particularly applies to the comparison and control of the 2-channel analog signals. Now it widely used in the industrial field process control, electric autoimmunization, and automation & control safety monitoring.

The integrated high-efficiency DC-DC power supply of DIN ISO C-P-O-S can produce multi-channel isolated power to the internal amplifier circuit, selection and comparison circuit, modulation and demodulation circuit, isolation conversion circuit. The SMD craft and new isolation technologies makes the products realize  3000VDC isolation between the working power, input and output signals. It can also meet environmental requirements of industrial wide temperature (- 45 to + 85 degree).
