DC/DC Converters

The DC-to-DC converters are the electronic circuits or electromechanical devices, which can transfigure the source of direct current (DC) from one level of voltage to another. These take the voltage from the DC source and then convert it into another DC voltage level. DC-to-DC converters, supplied, manufactured and exported by us are most commonly used to increase as well as reduce the voltage level. The said products are applicable for portable DVD players, automobiles, and portable chargers. These are needed to produce the regulated voltage in an efficient way. Also, these converter can be utilized for the purpose of insulation.
Product Image (GRC Series)

Grc Series Low Cost High Voltage Output Isolated Boost Dc Dc Converter Power Modules

Price: 26.00 - 28.00 USD ($)/Piece
  • Product Type:High voltage boost DC DC converter
  • Output Voltage:50, 100, 200, 300, 400, 500, 600, ±50, ±100, ±150, ±200, ±250, ±300VDC Volt (V)
  • Size:50.8mm*25.4mm*10.5mm
  • Output Power:1~6 Watt (w)
  • Input Voltage:10~18, 18~36VDC Volt (V)
  • Efficiency:70%~80%
  • Delivery Time:3 Days
  • Supply Ability:50000 Per Month
Product Image (GRE Series)

GRE Series Dual Loop Regulated Output High Voltage DC DC Converters

Price: 26.30 - 29.90 USD ($)/Piece
  • Size:33*19.5*10.5mm
  • Output Voltage:50, 100, 150, 200, 250, 300, 400, 500VDC Volt (V)
  • Product Type:High Voltage DC DC Converters
  • Output Power:1~5 Watt (w)
  • Efficiency:60% ~ 80%
  • Ripple:50mVp-p
  • Input Voltage:4.5~9, 9~18, 18~28VDC Volt (V)
  • Supply Ability:50000 Per Month
  • Delivery Time:3 Days
Product Image (WHB Series)

Whb Series 10kvdc High Isolation Fixed Input Single Regulated Output Dc Dc Converters With 8kv Anti-static Protection

Price: 21.00 - 43.50 USD ($)
  • Output Power:1~2W Watt (w)
  • Input Voltage:3.3,5, 9, 12, 15, 24VDC Volt (V)
  • Ripple:50mVp-p
  • Efficiency:60%~80%
  • Product Type:High Isolation DC DC Converter
  • Output Voltage:3.3, 5, 9, 12, 15VDC Volt (V)
  • Delivery Time:3 Days
  • Supply Ability:50000 Per Month
Product Image (VD-H Series)

Vd-h Series 3kvac Isolation Fixed Input Dual Loop Regulated Output Dc-dc Converters With 8kv Anti-static Protection

Price: 4.00 - 6.50 USD ($)/Piece
  • Supply Ability:50000 Per Month
  • Delivery Time:3 Days
  • Efficiency:70%~85%
  • Ripple:50mVp-p
  • Input Voltage:3.3, 5, 12, 15, 24VDC Volt (V)
  • Output Power:0.5~2 Watt (w)
  • Output Voltage:5, 9, 12, 15VDC Volt (V)
  • Product Type:DC DC Converter
Product Image (BHK Series)

Bhk Series 1kvac Isolation Ultra Low Power 0.1~0.5w Dc-dc Converters For Two Wire Instruments

Price: 2.50 - 4.60 USD ($)/Piece
  • Output Power:0.1~0.5 Watt (w)
  • Efficiency:65%~85%
  • Ripple:50mVp-p
  • Input Voltage:3.3, 5, 12, 24VDC Volt (V)
  • Output Voltage:3.3, 5, 9, 12, 15, 24VDC Volt (V)
  • Product Type:DC DC Converter
  • Delivery Time:3 Days
  • Supply Ability:50000 Per Month
Product Image (WDH Series)

Wdh Series 6kvac Isolation Fixed Input Dual Loop Regulated Output Dc-dc Converters With 8kv Anti-static Protection

Price: 5.60 - 7.99 USD ($)/Piece
  • Efficiency:70%~85%
  • Input Voltage:3.3, 5, 12, 15, 24VDC Volt (V)
  • Ripple:50mVp-p
  • Output Power:0.5~2 Watt (w)
  • Output Voltage:5, 9, 12, 15VDC Volt (V)
  • Product Type:DC DC Converter
  • Supply Ability:50000 Per Month
  • Delivery Time:3 Days
Product Image (GRB Series)

Grb Series Wide Range Input High Voltage Output Boost Dc Dc Converters

Price: 16.50 - 26.00 USD ($)/Piece
  • Product Type:Boost DC DC Converter
  • Output Voltage:80, 100, 110, 220VDC Volt (V)
  • Output Power:1~10 Watt (w)
  • Input Voltage:9~18, 18~36VDC Volt (V)
  • Ripple:150mVp-p
  • Efficiency:80%~90%
  • Delivery Time:3 Days
  • Supply Ability:50000 Per Month
Product Image (WRH Series)

Wrh Series 6kvac Isolation Fixed Input Single Regulated Output Dc-dc Converters With 8kv Anti-static Protection

Price: 4.80 - 7.00 USD ($)/Piece
  • Supply Ability:50000 Per Month
  • Delivery Time:3 Days
  • Output Power:0.5~2 Watt (w)
  • Ripple:50mVp-p
  • Input Voltage:3.3,5, 12, 15, 24VDC Volt (V)
  • Efficiency:70%~80%
  • Product Type:DC DC Converter
  • Output Voltage:3.3, 5, 9, 12, 15 Volt (V)
Product Image (IB Series)

IB Series 1KVAC Isolation Fixed Input Single Regulated Output DC DC Converters

Price: 2.20 - 4.50 USD ($)/Piece
  • Input:3.3, 5, 12, 24VDC
  • Output:3.3, 5, 9, 12, 15, 24VDC
  • Supply Ability:50000 Per Month
  • Delivery Time:3 Days
Product Image (BLS/LD Series)

1KVAC Isolation Fixed Input Single Unregulated Output DC/DC Converters

Price: 1.75 - 3.99 USD ($)/Piece
  • Delivery Time:3 Days
  • Supply Ability:50000 Per Month
  • Output:3.3, 5, 9, 12, 15, 24VDC
  • Input:5, 9, 12, 15, 24VDC
Product Image (F Series)

F Series 3KV Isolation Fixed Input Single Unregulated Output DC DC Converters

Price: 2.10 - 4.80 USD ($)/Piece
  • Input:5, 9, 12, 15, 24VDC
  • Output:3.3, 5, 9, 12, 15, 24VDC
  • Supply Ability:50000 Per Month
  • Delivery Time:3 Days

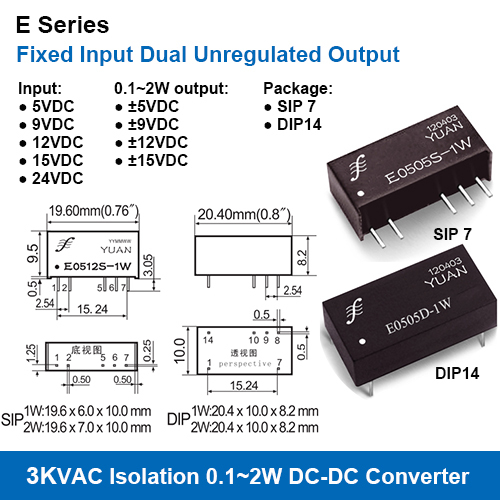

Product Image (E Series)

3KV Isolation Fixed Input Dual Unregulated Output DC DC Converters

Price: 2.20 - 5.00 USD ($)/Piece
  • Input:5, 9, 12, 15, 24VDC
  • Output:±5, ±9, ±12, ±15VDC
  • Delivery Time:3 Days
  • Supply Ability:50000 Per Month

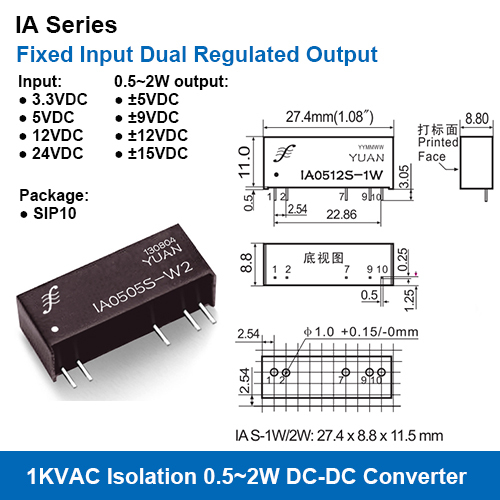

Product Image (IA Series)

IA Series 1KVAC Isolation Fixed Input Dual Regulated Output DC DC Converters

Price: 3.50 - 5.85 USD ($)/Piece
  • Delivery Time:3 Days
  • Supply Ability:50000 Per Month
  • Input:3.3, 5, 12, 24VDC
  • Output:±5, ±9, ±12, ±15VDC
Product Image (G/H Series)

G/H Series 6KVAC Isolation Fixed Input Single/Dual Unregulated Output DC DC Converters

Price: 3.50 - 5.80 USD ($)/Piece
  • Delivery Time:3 Days
  • Supply Ability:50000 Per Month
  • Output:±5, ±9, ±12, ±15VDC
  • Input:3.3, 5, 12, 24VDC
Product Image (A series)

A Series 1KVAC Dual Unregulated Output Isolated DC DC Converters

Price: 2.18 - 5.30 USD ($)/Piece
  • Input:3.3, 5, 9, 12, 15, 24VDC
  • Output:±5, ±9, ±12, ±15VDC/0.25~2W
  • Delivery Time:3 Days
  • Supply Ability:50000 Per Month

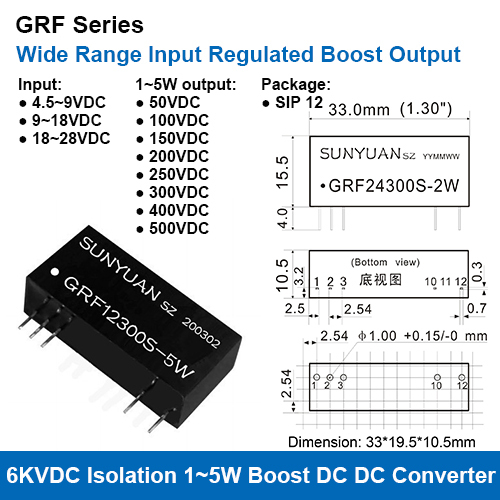

Product Image (GRF Series)

GRF Series 6KVDC High Isolation Wide Range Input High Voltage Regulated Output DC DC Converters

Price: 23.50 - 26.50 USD ($)/Piece
  • Supply Ability:50000 Per Month
  • Delivery Time:3 Days
  • Product Type:Boost DC DC Converter
  • Output Voltage:50, 100, 150, 200, 250, 300, 400, 500VDC Watt (W)
  • Size:33*19.5*10.5mm
  • Input Voltage:4.5~9, 9~18, 18~28VDC Watt (W)
  • Efficiency:60%~80%
  • Output Power:1~5 Watt (w)
Product Image (WRF-H Series)

Wrf-h Series 3kvac Isolation Fixed Input Single Regulated Output Dc-dc Converters With 8kv Anti-static Protection

Price: 3.99 - 6.20 USD ($)/Piece
  • Supply Ability:50000 Per Month
  • Delivery Time:3 Days
  • Ripple:50mVp-p
  • Input Voltage:5, 9, 12, 24VDC Volt (V)
  • Efficiency:65%~85%
  • Output Power:0.5-2W Volt (v)
  • Product Type:DC DC Converter
  • Output Voltage:3.3, 5, 9, 12, 15VDC Volt (V)

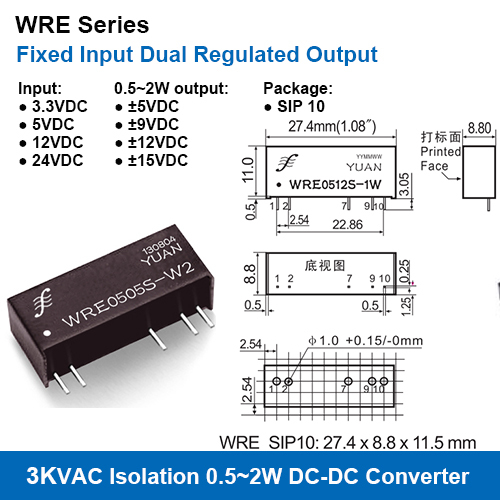

Product Image (WRE Series)

Wre Series 3kvac Isolation Fixed Input Positive And Negative Dual Regulated Output Dc-dc Converters

Price: 3.65 - 5.70 USD ($)/Piece
  • Product Type:DC DC Converter
  • Output Voltage:±5, ±9, ±12, ±15VDC Volt (V)
  • Output Power:0.5~2 Watt (w)
  • Ripple:50mVp-p
  • Input Voltage:3.3, 5, 12, 24 Volt (V)
  • Efficiency:60%~85%
  • Delivery Time:3 Days
  • Supply Ability:50000 Per Month
Product Image (WRF Series)

Wrf Series 3kvac Isolation Fixed Input Single Regulated Output Dc-dc Converters

Price: 3.30 - 5.90 USD ($)/Piece
  • Delivery Time:3 Days
  • Supply Ability:50000 Per Month
  • Product Type:DC-DC Converter
  • Output Voltage:3.3, 5, 9, 12, 15, 24VDC Watt (W)
  • Input Voltage:3.3, 5, 12, 24 Watt (W)
  • Ripple:50mVp-p
  • Efficiency:60%~80%
  • Output Power:0.5~2 Watt (w)
Product Image (B Series)

Small Size 1KVAC Isolation Fixed Input Unregulated Output DC-DC Converters

Price: 1.75 - 3.99 USD ($)/Piece
  • Output:3.3, 5, 9, 12, 15, 24VDC
  • Input:3.3, 5, 9, 12, 15, 24VDC
  • Delivery Time:3 Days
  • Supply Ability:50000 Per Month

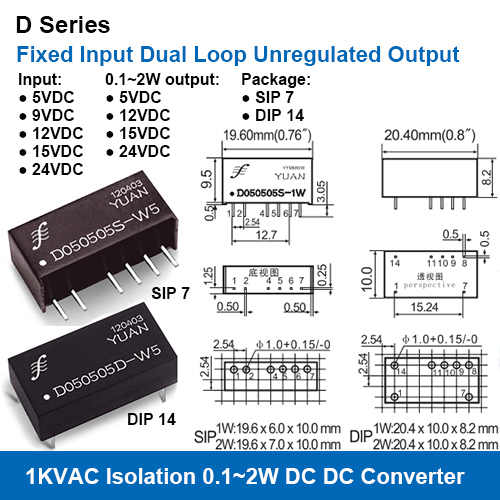

Product Image (D Series)

D Series 1KVAC Isolation Fixed Input Dual Loop Unregulated Output Power Modules

Price: 2.35 - 4.50 USD ($)/Piece
  • Input:5, 9, 12, 15, 24VDC
  • Output:5, 12, 15, 24VDC
  • Delivery Time:3 Days
  • Supply Ability:50000 Per Month
Product Image (VD Series)

VD Series 1KVAC Isolation Fixed Input Dual Loop Regulated Output DC DC Converters

Price: 2.65 - 4.99 USD ($)/Piece
  • Output:5, 9, 12, 15VDC
  • Input:3.3, 5, 12, 24VDC
  • Delivery Time:3 Days
  • Supply Ability:50000 Per Month
