Universal Analog Signal Isolation Amplifiers

Universal Analog Signal Isolation Amplifiers, supplied, manufactured and exported by us are the differential amplifiers, enabling the measurement of small signals. These provide excellent electrical isolation as well as electrical safety barrier. With their use, the chance of measurement errors is less.  Universal Analog Signal Isolation Amplifiers, offered by Shenzhen Sunyuan Technology Co., Ltd have various benefits such as protection for high-priced equipment, improved noise immunity, ground loop removal and increased common-mode voltage rejection. These are highly essential for the measurement of small signals.
Product Image (ISOEM U(A)-P-O)

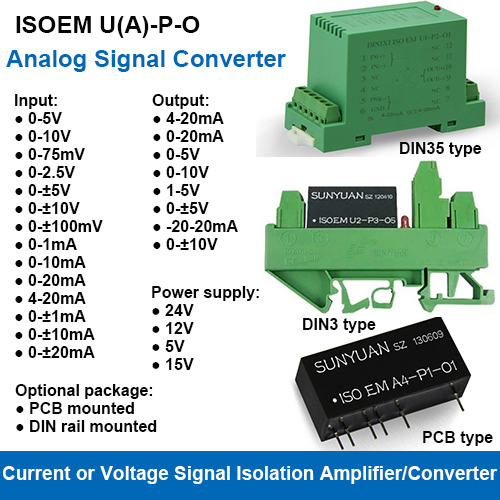

ISOEM U(A)-P-O Series Universal Input Current/Voltage Output Isolated Signal Converters

Price: 13.00 - 50.00 USD ($)/Piece
  • Output:4-20mA, 0-20mA, 0-5V, 0-10V, 1-5V, 0-±5V, -20-20mA, 0-±10V
  • Input:0-5V, 0-10V, 0-75mV, 0-2.5V, 0-±5V, 0-±10V, 0-±100mV, 0-1mA, 0-10mA, 0-20mA, 4-20mA, 0-±1mA, 0-±10mA, 0-±20mA
  • Power Supply:24V/12V/15V/5VDC
  • Supply Ability:50000 Per Month
  • Delivery Time:3 Days
Product Image (ISO EM U(A)-P-O-SD)

ISOEM U(A)-P-O-SD Span Zero And Gain Adjustable Analog Signal Isolation Distributors

Price: 19.00 - 48.50 USD ($)/Piece
  • Delivery Time:3 Days
  • Supply Ability:50000 Per Month
  • Power Supply:24V/12V/15V/5VDC
  • Dimension(L*W*H):31.6*20.2*14.3 Millimeter (mm)
  • Output:4-20mA, 0-20mA, 0-5V, 0-10V, 1-5V, 0-±5V, -20-20mA, 0-±10V
  • Input:0-5V, 0-10V, 0-75mV, 0-2.5V, 0-±5V, 0-±10V, 0-±100mV, 0-10mV, 0-20mV, 0-30mV, 0-50mV, 0-1mA, 0-10mA, 0-20mA, 4-20mA, 0-±1mA, 0-±10mA, 0-±20mA
Product Image (ISO EM U(A)-P-O-S)

ISOEM U(A)-P-O-S Current or Voltage Signal Isolation Converters and Distributors

Price: 15.50 - 41.00 USD ($)/Piece
  • Delivery Time:3 Days
  • Supply Ability:50000 Per Month
  • Usage:Passive sensor isolated power distribution, signal acquisition & transmission
  • Power Supply:24V/12V/15V/5VDC
  • Application:Industrial
  • Input:0-5V, 0-10V, 0-75mV, 0-2.5V, 0-±5V, 0-±10V, 0-±100mV, 0-1mA, 0-10mA, 0-20mA, 4-20mA, 0-±1mA, 0-±10mA, 0-±20mA
  • Color:Black, Green
  • Output:4-20mA, 0-20mA, 0-5V, 0-10V, 1-5V, 0-±5V, -20-20mA, 0-±10V
  • Product Type:Signal Converter and Power Distributor
  • Function:Current or Voltage Signal Isolation Converters and Distributors
Product Image (ISO EMH U(A)-P-O)

6KVDC Isolation Current or Voltage Signal Converters

Price: 24.80 - 59.90 USD ($)/Piece

Input: 0-5V, 0-10V, 0-75mV, 0-2.5V, 0-±5V, 0-±10V, 0-±100mV, 0-1mA, 0-10mA, 0-20mA, 4-20mA, 0-±1mA, 0-±10mA, 0-±20mA Output: 4-20mA, 0-20mA, 0-5V, 0-10V, 1-5V, 0-±5V, -20-20mA, 0-±10V Power supply: 24V/12V/15V/5VDC Isolation voltage: 6KVDC Package type: PCB mounted, DIN rail mounted

Product Image (ISO U(A)-P-O)

ISO U(A)-P-O Optocoupler Current or Voltage Signal Converters

Price: 17.50 - 45.50 USD ($)/Piece

Input: 0-5V, 0-10V, 0-75mV, 0-2.5V, 0-1mA, 0-10mA, 0-20mA, 4-20mA Output: 4-20mA, 0-20mA, 0-5V, 0-10V, 1-5V Power supply: 24V/12V/15V/5VDC Isolation voltage: 3KVDC Optocoupler Isolation Package type: PCB mounted, DIN rail mounted

Product Image (ISO EM U(A)-P-O-O)

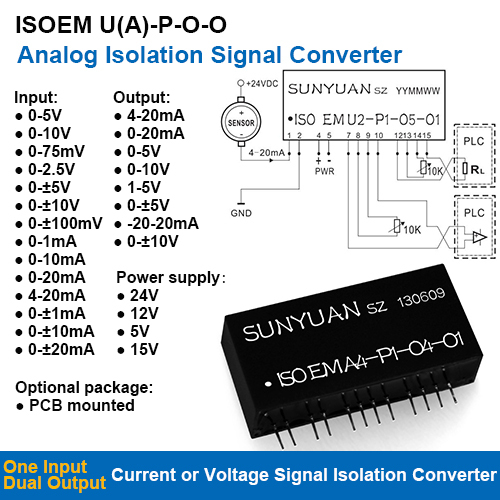

ISOEM U(A)-P-O-O Dual Output Current or Voltage Signal Isolation Converter IC

Price: 23.00 - 28.00 USD ($)/Piece
  • Supply Ability:50000 Per Month
  • Delivery Time:3 Days
  • Input:0-5V, 0-10V, 0-75mV, 0-2.5V, 0-±5V, 0-±10V, 0-±100mV, 0-1mA, 0-10mA, 0-20mA, 4-20mA, 0-±1mA, 0-±10mA, 0-±20mA
  • Output:4-20mA, 0-20mA, 0-5V, 0-10V, 1-5V, 0-±5V, -20-20mA, 0-±10V
  • Power Supply:24V/12V/15V/5VDC
  • Dimension(L*W*H):46.1*25.6*11.8 Millimeter (mm)
Product Image (ISO EM U(A)-P-O-T)

ISOEM U(A)-P-O-T Span Zero And Gain Adjustable Current or Voltage Signal Converters

Price: 14.50 - 39.50 USD ($)/Piece

Input: 0-5V, 0-10V, 0-75mV, 0-2.5V, 0-1mA, 0-10mA, 0-20mA, 4-20mA Output: 4-20mA, 0-20mA, 0-5V, 0-10V, 1-5V Power supply: 24V/12V/15V/5VDC Isolation voltage: 3KVDC Span, Zero&Gain Adjustable Package type: PCB mounted, DIN rail mounted
